180mm Guided Rocket

180mm

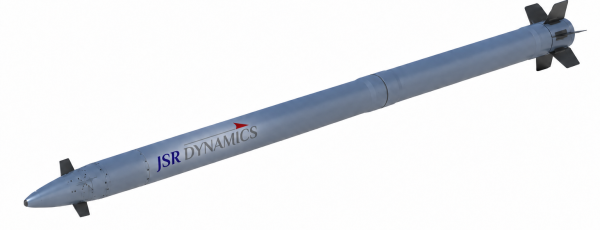

180mm Guided Rocket

A high-precision rocket equipped with an advanced control system for superior manoeuvrability and accuracy. Designed for tactical strike missions, it offers enhanced stability, extended range and optimised performance in various operational scenarios.

Parameters & Specifications

  • Caliber: 180 mm

  • Overall Length: 4.7 m

  • Total Take-off Mass: 240 kg

  • Propellant Mass: 95 kg

  • Warhead: 33 kg

  • Max Peak Velocity: 3.4M

  • Burn Time: 6.07 sec

  • Total Impulse: 22465 kgf-s

  • Grain Configuration: Fin-o-cyl

  • Max. Range (Guided): 80 km with 90⁰ impact

  • Accuracy (with Terminal Seeker): <5 m

  • Mid-course Guidance: Multi constellation GNSS coupled INS
